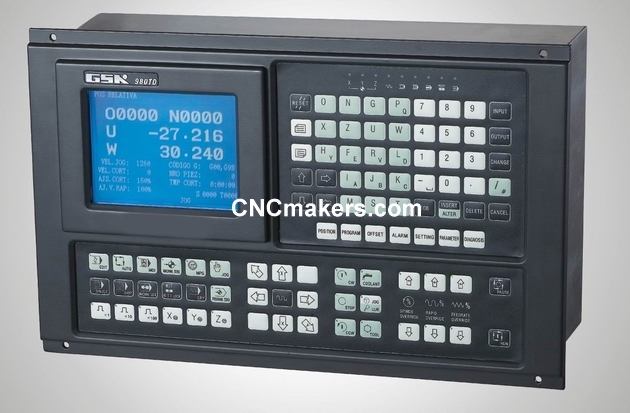

Motion control

Controllable axes: 2(X, Z); simultaneous controllable axes: 2 (X, Z)

Interpolation: linear, arc interpolation in X, Z direction

Dimension for programs: -9999.999～9999.999mm; min. unit: 0.001mm

Electronic gear：instruction multiplying 1～32767 and dividing 1～32767

Rapid traverse speed: max. 16000mm/min(option:30000mm/min)

Rapid override: time real tuning F0，25%，50%，100%

Cutting feedrate: max.8000mm/min(option:15000mm/min) or 500mm/rev(feedrate per rev)

Feedrate override: 16 steps real time tuning for 0～150%

Manual feedrate: 16 steps real time tuning for 0～1260mm/min

Handwheel feedrate: 0.001，0.01，0.1mm

Acceleration/deceleration: S acceleration/deceleration for rapid traverse movement and exponential acceleration/deceleration for cutting feed

Ｇ

instructions

28 kinds of G instructions: G00, G01, G02, G03, G04, G28, G32, G33, G34, G40, G41, G42, G50, G65, G70, G71, G72, G73, G74, G75, G76, G90, G92, G94, G96, G97, G98, G99 and macro instruction G65 to execute 27 kinds of calculation, logic operation and program jumping

Thread machining

Tapping to machine metric/inch single/multiple straight thread, taper thread, end face thread, variable pitch thread. High  speed thread run out with set retraction distance, angel and speed; pitch: 0.001～500mm or 0.06～25400 tooth/inch

Spindle encoder: lines can be set （100～5000p/r）

Drive ratio between encoder and spindle: （1～255）：（1～255）

Precision compensation

Backlash compensation: （X, Z）0～2.000mm

Pitch error compensation: 255 compensation points with ±0.255mm×compensation override for each one in X, Z direction

Tool compensation: 32 groups tool length compensation, tool nose radius compensation (tool compensation C)

Toolsetting method: fixed-point toolsetting, trial cutting toolsetting

Tool compensation executing methods: traversing tool or coordinate offset

M

instructions

M instructions(no repetition): M02, M30, M98, M99, M9000～M9999

Other M□□ instructions are defined and executed by PLC programs

M instructions defined by standard PLC program: M00, M03, M04, M05, M08, M09,

M10, M11, M12, M13, M32, M33, M41, M42, M43, M44

T

instruction

Most 32 tool selections（T01□□～T32□□）, the time sequence of tool change is defined by PLC programs. The tool selection is set to 1 and the tool change is not executed by PLC when the line-up toolpost is employed. The standard PLC programs is optional to 2～8 tool selections toolpost, clockwise rotation for selecting tools and counterclockwise rotation for clamping toolpost.

Spindle speed

Speed switching value control: S□□ instruction is defined and executed by PLC programs, direct output of S1, S2, S3, S4 is controlled by the standard PLC programs and S0 is used for stopping output of S1, S2, S3, S4

Speed analog voltage control: S instructions specifying the spindle speed per minute or the cutting surface speed (constant surface speed control) , the system outputting 0～10V voltage to spindle converter, 4 gears spindle speed with stepless shifting gear

PLC

function

9 kinds of elementary instruction, 23 kinds of function instruction, 2 grades PLC program, max. 5000 steps and 2μs for each step, refresh cycle for the first grade program is 8ms, ladder editing software, PLC program communication download

Integrated machine control panel: 41 input points (press keys), 42 output points (LED)

Basic I/O interfaces: 16 input points /16 output points (optional I/O interface: 16 input points /16 output points)

Displaying window

Display: 320×240 lattice, 5.7” monochrome liquid crystal display(LCD), CCFL in a poor light

Display method: Chinese or English window is set by parameter, displaying machining

path of workpiece

Program editing

Program capacity: 6144KB, max. 384 programs, supporting user macro program calling and four-embedded subprogram

Editing method: incremental coordinates, absolute coordinate and compound coordinates programming with full screen edit

Communication

Bidirectional communication for programs and parameters between CNC and PC, CNC and CNC; communication upgrading and downloading CNC software and PLC programs

Optional driving

DA98 Series Digital AC Servo or DY3 Series Stepper Driver with input pulse and direction signal
