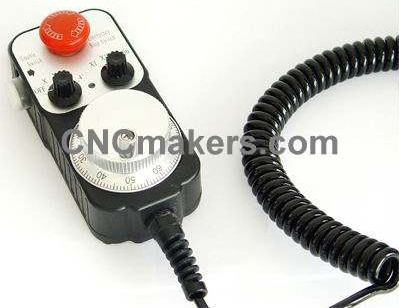

External MPG (Handwheel)

External MPG (Handwheel)

Characteristic
New Design, Portable, Anti-interference, Good Carrier Ability
Full Plastic Cover, High Insulation Grade
Oil-proof disign
x1, x10, x100 Three Multiplying
4 Axes Switchover
Control Switch, Emergency Switch Optional
Hunanization Design, Easy To Operate
Suitable for CNC Machines, Print Machines, etc.

Optional Pulse
25, 100p/r

Electrical Ratings
Supply Voltage: DC+5~12V
Output Voltage: High Level85%Vcc, Low Level0.5V
Current Consumption:150mA
Response Frequency: 0~20KHz
Output Waveform: Square Wave
Circuit Feature: C Collector Open-circuit Output, F Complementary Output
                            E Voltage Output, L Long-line Driver Output

Machanical Specifications
Starting Torque: 6x10-2 Nm
Axis Peak Load: Radial: 20N, Axial: 10N
Normal Mechanism Rotating Speed: 200rpm
Peak Mechanism Rotating Speed: 500rpm
Shock Resistance: 980m/s2, 6ms, XYZ Direction 2 Times for Each
Vibrate Resistance: 50m/s2, 10~200Hz, XYZ Direction 2 Hours for Each
Weight: 0.5kg

Environment Condition
Working Templeture: -10°C~70°C
Storage Templeture: -30°C~85°C
Working Humidity: 30~85% No Moisture Condensation
Grade of Protection: Water-proof, Oil-proof, Dust-proof IP54
